Hexágono de profundidad métrica de 3/4 "

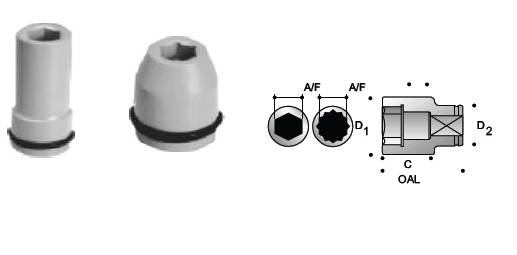

A / F : tamaño normal en planos
D1 : Diámetro exterior máximo. extremo del enchufe
D2 : extremo de accionamiento cuadrado de diámetro exterior máximo
OAL : Longitud total nominal
T : profundidad mínima de la forma del encaje
C : profundidad de holgura del perno

A / F mm	MODELO Número	D1 mm	D2 mm	T mm	C mm	OAL mm	Peso Kg.
17 19 21	S-12M 17L S-12M 19L S-12M 21L	30,0 32,0 36,0	42,0 42,0 42,0	12,0 12,0 13,0	61,0 61,0 61,0	85,0 85,0 85,0	0,463 0,479 0.542
22 23 24	S-12M 22L S-12M 23L S-12M 24L	37,0 39,0 40,0	42,0 42,0 42,0	13,0 13,0 15.0	61,0 61,0 61,0	85,0 85,0 85,0	0.551 0.586 0.595
26 27 28	S-12M 26L S-12M 27L S-12M 28L	41,0 43,0 44,0	42,0 43,0 44,0	15.0 16,0 16,0	66,0 66,0 66,0	90,0 90,0 90,0	0,618 0,674 0,699
30 32 33	S-12M 30L S-12M 32L S-12M 33L	47,0 49,0 50,0	44,0 44,0 44,0	18.0 18.0 18.0	66,0 66,0 66,0	90,0 90,0 90,0	0,769 0,798 0,812
34 36 38	S-12M 34L S-12M 36L S-12M 38L	52,0 54,0 57,0	44,0 54,0 54,0	20,0 20,0 23,0	66,0 66,0 66,0	90,0 90,0 90,0	0,869 1.034 1.125
41 42 43	S-12M 41L S-12M 42L S-12M 43L	61,0 62,0 63,0	54,0 54,0 54,0	23,0 25,0 25,0	66,0 66,0 66,0	90,0 90,0 90,0	1.229 1.241 1.255
46 50	S-12M 46L S-12M 50L	67,0 70,0	54,0 54,0	25,0 28,0	76,0 76,0	100,0 100,0	1.563 1.573
