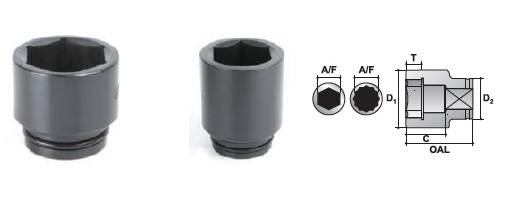

A / F : tamaño normal en planos
D1 : Diámetro exterior máximo. extremo del enchufe
D2 : extremo de accionamiento cuadrado de diámetro exterior máximo
OAL : Longitud total nominal
T : profundidad mínima de la forma del encaje
C : profundidad de holgura del perno
D1 : Diámetro exterior máximo. extremo del enchufe
D2 : extremo de accionamiento cuadrado de diámetro exterior máximo
OAL : Longitud total nominal
T : profundidad mínima de la forma del encaje
C : profundidad de holgura del perno
A / F mm | MODELO Número | D1 mm | D2 mm | T mm | C mm | OAL mm | Peso Kg. |
|---|---|---|---|---|---|---|---|
43 44 45 |
S-40 M43 S-40 M44 S-40 M45 |
86.0 86.0 86.0 |
116.0 116.0 116.0 |
28.0 28.0 28.0 |
46.0 46.0 46.0 |
104.0 104.0 104.0 |
5.24 5.20 5.15 |
46 47 48 |
S-40 M46 S-40 M47 S-40 M48 |
86.0 86.0 86.0 |
116.0 116.0 116.0 |
28.0 28.0 28.0 |
46.0 46.0 46.0 |
104.0 104.0 104.0 |
5.11 5.06 5.01 |
49 50 51 |
S-40 M49 S-40 M50 S-40 M51 |
86.0 86.1 90.0 |
116.0 116.0 116.0 |
28.0 28.0 29.0 |
46.0 46.0 46.0 |
104.0 104.0 104.0 |
4.97 4.92 5.07 |
52 54 55 |
S-40 M52 S-40 M54 S-40 M55 |
90.0 92.5 93.8 |
116.0 124.0 124.0 |
29.0 30.0 32.0 |
46.0 46.0 52.0 |
104.0 104.0 110.0 |
5.02 5.87 6.08 |
56 57 58 |
S-40 M56 S-40 M57 S-40 M58 |
95.0 96.3 97.5 |
124.0 124.0 124.0 |
32.0 32.0 32.0 |
52.0 52.0 52.0 |
110.0 110.0 110.0 |
6.10 6.12 6.14 |
59 60 62 |
S-40 M59 S-40 M60 S-40 M62 |
98.8 100.0 103.0 |
127.0 127.0 127.0 |
34.0 36.0 36.0 |
54.0 56.0 56.0 |
112.0 114.0 114.0 |
6.55 6.64 6.69 |
65 67 70 |
S-40 M65 S-40 M67 S-40 M70 |
106.0 109.0 113.0 |
127.0 127.0 127.0 |
38.0 38.0 40.0 |
58.0 58.0 60.0 |
116.0 116.0 118.0 |
6.83 6.89 7.05 |
73 75 76 |
S-40 M73 S-40 M75 S-40 M76 |
116.0 119.0 120.0 |
127.0 127.0 127.0 |
40.0 42.0 44.0 |
60.0 64.0 64.0 |
118.0 122.0 122.0 |
7.13 7.38 7.39 |
80 85 86 |
S-40 M80 S-40 M85 S-40 M86 |
125.0 129.0 132.0 |
127.0 127.0 127.0 |
44.0 48.0 50.0 |
64.0 68.0 68.0 |
122.0 126.0 129.0 |
7.50 8.06 8.59 |
90 95 100 |
S-40 M90 S-40 M95 S-40 M100 |
136.0 142.0 148.0 |
127.0 127.0 127.0 |
52.0 54.0 56.0 |
70.0 72.0 78.0 |
130.0 132.0 138.0 |
8.87 9.37 10.20 |
105 110 115 |
S-40 M105 S-40 M110 S-40 M115 |
154.0 161.0 165.0 |
127.0 127.0 127.0 |
60.0 64.0 67.0 |
82.0 86.0 89.0 |
142.0 146.0 149.0 |
10.99 11.89 12.19 |
120 125 130 |
S-40 M120 S-40 M125 S-40 M130 |
173.0 179.0 185.0 |
127.0 127.0 127.0 |
70.0 73.0 76.0 |
92.0 95.0 98.0 |
152.0 153.0 156.0 |
13.30 13.68 14.52 |
135 140 145 |
S-40 M135 S-40 M140 S-40 M145 |
192.0 196.0 204.0 |
152.0 152.0 152.0 |
79.0 82.0 85.0 |
103.0 106.0 109.0 |
161.0 164.0 167.0 |
18.37 18.58 20.22 |
150 155 160 |
S-40 M150 S-40 M155 S-40 M160 |
211.0 215.0 223.0 |
152.0 152.0 152.0 |
88.0 91.0 94.0 |
112.0 117.0 120.0 |
170.0 175.0 178.0 |
21.37 22.04 23.92 |
165 170 175 |
S-40 M165 S-40 M170 S-40 M175 |
229.0 235.0 242.0 |
175.0 175.0 175.0 |
96.0 98.0 100.0 |
122.0 126.0 128.0 |
180.0 184.0 186.0 |
27.19 28.93 30.20 |
180 185 190 |
S-40 M180 S-40 M185 S-40 M190 |
246.0 254.0 261.0 |
175.0 175.0 175.0 |
103.0 106.0 109.0 |
131.0 134.0 137.0 |
189.0 192.0 195.0 |
30.28 32.54 34.04 |
195 200 210 |
S-40 M195 S-40 M200 S-40 M210 |
265.0 273.0 285.0 |
175.0 175.0 175.0 |
112.0 115.0 120.0 |
142.0 145.0 150.0 |
200.0 203.0 208.0 |
34.80 37.49 39.91 |
215 225 |
S-40 M215 S-40 M225 |
292.0 304.0 |
175.0 175.0 |
123.0 130.0 |
153.0 160.0 |
211.0 218.0 |
41.94 45.71 |
