Hexágono métrico de 1 "


1 hexágono métrico

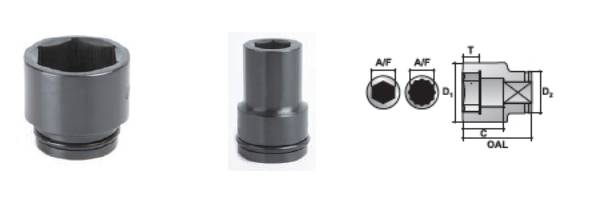

A / F : tamaño normal en planos
D1 : Diámetro exterior máximo. extremo del enchufe
D2 : extremo de accionamiento cuadrado de diámetro exterior máximo
OAL : Longitud total nominal
T : profundidad mínima de la forma del encaje
C : profundidad de holgura del perno
A / F
mm
MODELO
Número
D1
mm
D2
mm
T
mm
C
mm
OAL
mm
Peso
Kg.
19
20
21
S-16M19
S-16M20
S-16M21
36.0
36.0
38.0
51.0
51.0
51.0
14.0
14.0
14.0
25.0
25.0
25.0
55.0
55.0
55.0
0.51
0.50
0.52
22
23
24
S-16M22
S-16M23
S-16M24
40.0
40.0
42.0
51.0
51.0
51.0
14.0
14.0
16.0
25.0
25.0
27.0
55.0
55.0
57.0
0.53
0.52
0.55
25
26
27
S-16M25
S-16M26
S-16M27
43.0
45.0
46.0
51.0
51.0
51.0
16.0
16.0
16.0
27.0
27.0
27.0
57.0
57.0
57.0
0.55
0.56
0.57
28
29
30
S-16M28
S-16M29
S-16M30
47.0
48.0
49.0
51.0
51.0
54.0
16.0
18.0
18.0
27.0
29.0
29.0
57.0
59.0
59.0
0.57
0.59
0.66
31
32
33
S-16M31
S-16M32
S-16M33
51.0
52.0
54.0
54.0
54.0
54.0
18.0
18.0
18.0
29.0
29.0
29.0
59.0
59.0
59.0
0.66
0.68
0.69
34
35
36
S-16M34
S-16M35
S-16M36
54.0
54.0
57.0
54.0
54.0
54.0
20.0
20.0
20.0
31.0
31.0
31.0
61.0
61.0
61.0
0.70
0.69
0.78
37
38
39
S-16M37
S-16M38
S-16M39
57.0
59.0
60.0
54.0
54.0
54.0
20.0
22.0
22.0
31.0
34.0
34.0
61.0
64.0
64.0
0.76
0.84
0.88
40
41
42
S-16M40
S-16M41
S-16M42
62.0
62.0
64.0
54.0
54.0
54.0
22.0
22.0
24.0
34.0
34.0
36.0
64.0
64.0
66.0
0.85
0.90
0.97
43
44
45
S-16M43
S-16M44
S-16M45
65.0
66.0
68.0
54.0
54.0
54.0
24.0
24.0
24.0
36.0
36.0
36.0
66.0
66.0
66.0
0.98
0.98
1.03
46
47
48
S-16M46
S-16M47
S-16M48
68.0
71.0
71.0
54.0
54.0
54.0
26.0
26.0
26.0
38.0
38.0
38.0
68.0
68.0
68.0
1.02
1.12
1.08
49
50
51
S-16M49
S-16M50
S-16M51
74.0
74.0
77.0
54.0
54.0
62.0
28.0
28.0
28.0
40.0
40.0
40.0
70.0
70.0
70.0
1.17
1.17
1.40
52
54
55
S-16M52
S-16M54
S-16M55
77.0
79.0
79.0
62.0
62.0
62.0
28.0
28.0
30.0
40.0
40.0
44.0
70.0
70.0
74.0
1.40
1.42
1.45
56
57
58
S-16M56
S-16M57
S-16M58
80.0
84.0
84.0
62.0
62.0
62.0
30.0
30.0
30.0
44.0
44.0
44.0
74.0
74.0
74.0
1.46
1.59
1.59
59
60
62
S-16M59
S-16M60
S-16M62
87.0
87.0
90.0
62.0
62.0
62.0
32.0
32.0
34.0
47.0
47.0
49.0
77.0
77.0
79.0
1.75
1.75
1.89
65
70
75
S-16M65
S-16M70
S-16M75
93.0
99.0
104.0
62.0
86.0
86.0
36.0
38.0
40.0
51.0
54.0
56.0
81.0
84.0
89.0
1.99
2.81
3.08
80
85
90
S-16M80
S-16M85
S-16M90
112.0
119.0
122.0
86.0
86.0
86.0
42.0
44.0
46.0
58.0
60.0
62.0
91.0
93.0
95.0
3.54
3.85
3.84
95
100
105
S-16M95
S-16M100
S-16M105
130.0
134.0
142.0
106.0
106.0
106.0
48.0
50.0
52.0
64.0
66.0
68.0
97.0
99.0
101.0
5.13
5.20
5.83
110
115
S-16M110
S-16M115
147.0
153.0
106.0
127.0
54.0
56.0
72.0
72.0
105.0
105.0
6.00
7.36
