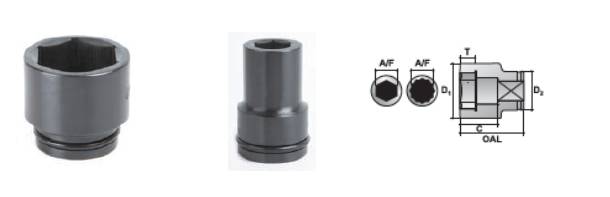

A / F : tamaño normal en planos
D1 : Diámetro exterior máximo. extremo del enchufe
D2 : extremo de accionamiento cuadrado de diámetro exterior máximo
OAL : Longitud total nominal
T : profundidad mínima de la forma del encaje
C : profundidad de holgura del perno
D1 : Diámetro exterior máximo. extremo del enchufe
D2 : extremo de accionamiento cuadrado de diámetro exterior máximo
OAL : Longitud total nominal
T : profundidad mínima de la forma del encaje
C : profundidad de holgura del perno
A / F mm | MODELO Número | D1 mm | D2 mm | T mm | C mm | OAL mm | Peso Kg. |
|---|---|---|---|---|---|---|---|
19 20 21 |
S-16M19L S-16M20L S-16M21L |
36.0 36.0 38.0 |
51.0 51.0 51.0 |
14.0 14.0 14.0 |
72.0 72.0 72.0 |
102.0 102.0 102.0 |
0.79 0.76 0.81 |
22 23 24 |
S-16M22L S-16M23L S-16M24L |
40.0 40.0 42.0 |
51.0 51.0 51.0 |
14.0 14.0 16.0 |
72.0 72.0 72.0 |
102.0 102.0 102.0 |
0.86 0.84 0.89 |
25 26 27 |
S-16M25L S-16M26L S-16M27L |
43.0 45.0 46.0 |
51.0 51.0 51.0 |
16.0 16.0 16.0 |
72.0 72.0 72.0 |
102.0 102.0 102.0 |
0.90 0.95 0.97 |
28 29 30 |
S-16M28L S-16M29L S-16M30L |
47.0 48.0 49.0 |
51.0 51.0 54.0 |
16.0 18.0 18.0 |
72.0 72.0 72.0 |
102.0 102.0 102.0 |
0.98 0.99 1.07 |
31 32 33 |
S-16M31L S-16M32L S-16M33L |
50.0 52.0 54.0 |
54.0 54.0 54.0 |
18.0 18.0 18.0 |
72.0 72.0 72.0 |
102.0 102.0 102.0 |
1.09 1.14 1.19 |
34 35 36 |
S-16M34L S-16M35L S-16M36L |
54.0 54.0 57.0 |
54.0 54.0 54.0 |
20.0 20.0 20.0 |
72.0 72.0 69.0 |
102.0 102.0 102.0 |
1.16 1.13 1.31 |
37 38 39 |
S-16M37L S-16M38L S-16M39L |
57.0 59.0 60.0 |
54.0 54.0 54.0 |
20.0 22.0 22.0 |
69.0 69.0 69.0 |
102.0 102.0 102.0 |
1.28 1.38 1.41 |
40 41 42 |
S-16M40L S-16M41L S-16M42L |
60.0 62.0 64.0 |
54.0 54.0 54.0 |
22.0 22.0 24.0 |
69.0 69.0 69.0 |
102.0 102.0 102.0 |
1.37 1.45 1.53 |
43 44 45 |
S-16M43L S-16M44L S-16M45L |
66.0 66.0 68.0 |
54.0 54.0 54.0 |
24.0 24.0 24.0 |
69.0 69.0 69.0 |
102.0 102.0 102.0 |
1.61 1.56 1.65 |
46 47 48 |
S-16M46L S-16M47L S-16M48L |
68.0 71.0 71.0 |
54.0 54.0 54.0 |
26.0 26.0 26.0 |
69.0 67.0 67.0 |
102.0 102.0 102.0 |
1.59 1.73 1.68 |
49 50 51 |
S-16M49L S-16M50L S-16M51L |
74.0 74.0 77.0 |
54.0 54.0 62.0 |
28.0 28.0 28.0 |
80.0 80.0 75.0 |
110.0 110.0 110.0 |
1.96 1.96 2.23 |
52 54 55 |
S-16M52L S-16M54L S-16M55L |
77.0 79.0 79.0 |
62.0 62.0 62.0 |
28.0 28.0 30.0 |
75.0 75.0 75.0 |
110.0 110.0 110.0 |
2.23 2.26 2.19 |
56 57 58 |
S-16M56L S-16M57L S-16M58L |
80.0 84.0 84.0 |
62.0 62.0 62.0 |
30.0 30.0 30.0 |
75.0 75.0 75.0 |
110.0 110.0 110.0 |
2.21 2.42 2.42 |
59 60 62 |
S-16M59L S-16M60L S-16M62L |
87.0 87.0 90.0 |
62.0 62.0 62.0 |
32.0 32.0 32.0 |
80.0 80.0 80.0 |
115.0 115.0 115.0 |
2.71 2.71 2.86 |
65 70 75 |
S-16M65L S-16M70L S-16M75L |
93.0 99.0 104.0 |
62.0 62.0 86.0 |
34.0 36.0 38.0 |
80.0 85.0 85.0 |
115.0 120.0 120.0 |
2.90 3.28 4.17 |
80 85 90 |
S-16M80L S-16M85L S-16M90L |
112.0 119.0 122.0 |
86.0 86.0 86.0 |
40.0 42.0 44.0 |
85.0 90.0 90.0 |
120.0 125.0 125.0 |
4.73 5.27 5.15 |
95 100 105 |
S-16M95L S-16M100L S-16M105L |
130.0 134.0 142.0 |
106.0 106.0 106.0 |
46.0 48.0 50.0 |
95.0 95.0 95.0 |
130.0 130.0 130.0 |
6.91 6.88 7.58 |
110 115 |
S-16M110L S-16M115L |
147.0 153.0 |
106.0 127.0 |
52.0 54.0 |
105.0 105.0 |
140.0 140.0 |
8.38 9.81 |
