Hexágono fraccional de 1 "

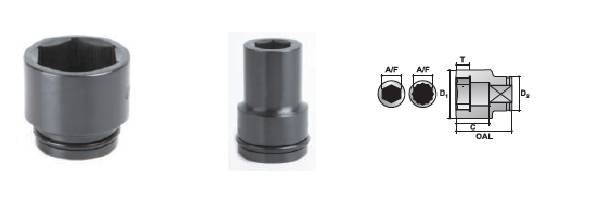

$1 hexágono fraccional$

A / F : tamaño normal en planos
D1 : Diámetro exterior máximo. extremo del enchufe
D2 : extremo de accionamiento cuadrado de diámetro exterior máximo
OAL : Longitud total nominal
T : profundidad mínima de la forma del encaje
C : profundidad de holgura del perno

A / F pulgada	MODELO Número	D1 pulgada	D2 pulgada	T pulgada	C pulgada	OAL pulgada	Peso libras
3/4 13/16 7/8	S-16 12 S-16 13 S-16 14	1.417 1.496 1.575	2.008 2.008 2.008	0.551 0.551 0.551	0.984 0.984 0.984	2.165 2.165 2.165	1.13 1.13 1.14
15/16 1 1.1/16	S-16 15 S-16 16 S-16 17	1.654 1.772 1.811	2.008 2.008 2.008	0.630 0.630 0.630	1.063 1.063 1.063	2.244 2.244 2.244	1.20 1.24 1.25
1.1/8 1.3/16 1.1/4	S-16 18 S-16 19 S-16 20	1.890 1.969 2.047	2.008 2.126 2.126	0.709 0.709 0.709	1.142 1.142 1.142	2.323 2.323 2.323	1.29 1.45 1.49
1.5/16 1.3/8 1.7/16	S-16 21 S-16 22 S-16 23	2.126 2.126 2.244	2.126 2.126 2.126	0.787 0.787 0.787	1.220 1.220 1.220	2.402 2.402 2.402	1.54 1.51 1.68
1.1/2 1.9/16 1.5/8	S-16 24 S-16 25 S-16 26	2.323 2.362 2.520	2.126 2.126 2.126	0.866 0.866 0.945	1.339 1.339 1.417	2.520 2.520 2.598	1.86 1.88 2.13
1.11/16 1.3/4 1.13/16	S-16 27 S-16 28 S-16 29	2.559 2.677 2.677	2.126 2.126 2.126	0.945 0.945 1.024	1.417 1.417 1.496	2.598 2.598 2.677	2.15 2.27 2.25
1.7/8 1.15/16 2	S-16 30 S-16 31 S-16 32	2.795 2.795 2.963	2.126 2.126 2.126	1.024 1.024 1.102	1.496 1.496 1.575	2.677 2.677 2.756	2.37 2.37 2.67
2.1/16 2.1/8 2.3/16	S-16 33 S-16 34 S-16 35	2.963 3.110 3.150	2.126 2.441 2.441	1.102 1.102 1.181	1.575 1.575 1.732	2.756 2.756 2.913	2.67 3.13 3.21
2.1/4 2.5/16 2.3/8	S-16 36 S-16 37 S-16 38	3.307 3.307 3.405	2.441 2.441 2.441	1.181 1.181 1.260	1.732 1.732 1.850	2.913 2.913 3.031	3.50 3.50 3.77
2.7/16 2.1/2 2.9/16	S-16 39 S-16 40 S-16 41	3.543 3.543 3.711	2.441 2.441 2.441	1.339 1.339 1.417	1.929 1.929 2.008	3.110 3.110 3.189	4.17 4.17 4.38
2.5/8 2.11/16 2.3/4	S-16 42 S-16 43 S-16 44	3.711 3.898 3.898	2.441 3.386 3.386	1.417 1.496 1.496	2.008 2.126 2.126	3.189 3.307 3.307	4.38 6.19 6.19
2.13/16 2.7/8 2.15/16	S-16 45 S-16 46 S-16 47	3.898 4.094 4.094	3.386 3.386 3.386	1.496 1.575 1.575	2.126 2.205 2.205	3.307 3.504 3.504	6.19 6.77 6.77
3 3.1/16 3.1/8	S-16 48 S-16 49 S-16 50	4.094 4.425 4.425	3.386 3.386 3.386	1.575 1.654 1.654	2.205 2.283 2.283	3.504 3.583 3.583	6.77 7.80 7.80
3.3/16 3.1/4 3.5/16	S-16 51 S-1652 S-1653	4.425 4.651 4.742	3.386 3.386 3.386	1.654 1.732 1.732	2.283 2.362 2.362	3.583 3.661 3.661	7.80 8.13 8.48
3.3/8 3.7/16 3.1/2	S-16 54 S-16 55 S-16 56	4.742 4.803 4.803	3.386 3.386 3.386	1.732 1.811 1.811	2.362 2.441 2.441	3.661 3.740 3.740	8.48 8.44 8.44
3.5/8 3.3/4 3.7/8	S-16 58 S-16 60 S-16 62	5.118 5.118 5.276	4.173 4.173 4.173	1.890 1.890 1.969	2.520 2.520 2.598	3.819 3.819 3.898	11.29 11.29 11.44
4 4.1/8 4.1/4	S-16 64 S-16 66 S-16 68	5.591 5.591 5.727	4.173 4.173 4.173	2.047 2.047 2.126	2.677 2.677 2.835	3.976 3.976 4.134	12.82 12.82 13.05
4.3/8 4.1/2	S-16 70 S-16 72	6.024 6.024	5.000 5.000	2.205 2.205	2.835 2.835	4.134 4.134	16.20 16.20
