Hexágono profundo fraccional de 1 "

$1 hexágono profundo fraccional$

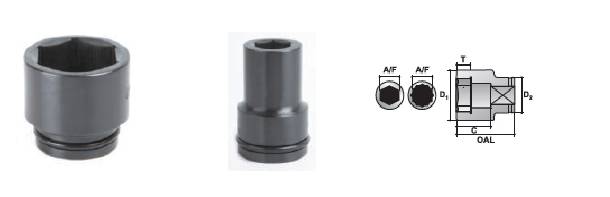

A / F : tamaño normal en planos
D1 : Diámetro exterior máximo. extremo del enchufe
D2 : extremo de accionamiento cuadrado de diámetro exterior máximo
OAL : Longitud total nominal
T : profundidad mínima de la forma del encaje
C : profundidad de holgura del perno

A / F pulgada	MODELO Número	D1 pulgada	D2 pulgada	T pulgada	C pulgada	OAL pulgada	Peso libras
3/4 13/16 7/8	S-16 12L S-16 13L S-16 14L	1.417 1.496 1.575	2.008 2.008 2.008	0.551 0.551 0.551	2.835 2.835 2.835	4.016 4.016 4.016	1.73 1.78 1.85
15/16 1 1.1/16	S-16 15L S-16 16L S-16 17L	1.654 1.772 1.811	2.008 2.008 2.008	0.630 0.630 0.630	2.835 2.835 2.835	4.016 4.016 4.016	1.95 2.10 2.13
1.1/8 1.3/16 1.1/4	S-16 18L S-16 19L S-16 20L	1.890 1.969 2.047	2.008 2.126 2.126	0.709 0.709 0.709	2.835 2.835 2.835	4.016 4.016 4.016	2.18 2.39 2.51
1.5/16 1.3/8 1.7/16	S-16 21L S-16 22L S-16 23L	2.126 2.126 2.244	2.126 2.126 2.126	0.787 0.787 0.787	2.835 2.835 2.717	4.016 4.016 4.016	2.56 2.49 2.82
1.1/2 1.9/16 1.5/8	S-16 24L S-16 25L S-16 26L	2.323 2.362 2.520	2.126 2.126 2.126	0.866 0.866 0.945	2.717 2.717 2.717	4.016 4.016 4.016	3.03 3.02 3.36
1.11/16 1.3/4 1.13/16	S-16 27L S-16 28L S-16 29L	2.559 2.677 2.677	2.126 2.126 2.126	0.945 0.945 1.024	2.717 2.717 2.717	4.016 4.016 4.016	3.53 3.62 3.49
1.7/8 1.15/16 2	S-16 30L S-16 31L S-16 32L	2.795 2.795 2.963	2.126 2.126 2.126	1.024 1.024 1.102	2.638 2.638 3.150	4.016 4.016 4.331	3.69 3.69 4.41
2.1/16 2.1/8 2.3/16	S-16 33L S-16 34L S-16 35L	2.963 3.110 3.150	2.126 2.441 2.441	1.102 1.181 1.181	3.150 2.953 2.953	4.331 4.331 4.331	4.41 4.81 4.85
2.1/4 2.5/16 2.3/8	S-16 36L S-16 37L S-16 38L	3.307 2.598 3.405	2.441 2.126 2.441	1.181 0.945 1.260	2.953 2.717 3.150	4.331 4.016 4.528	5.32 3.44 6.04
2.7/16 2.1/2 2.9/16	S-16 39L S-16 40L S-16 41L	3.543 2.796 3.741	2.441 2.126 2.441	1.260 1.024 1.339	3.150 2.368 3.150	4.528 4.016 4.528	6.30 3.81 6.38
2.5/8 2.11/16 2.3/4	S-16 42L S-16 43L S-16 44L	3.741 3.031 3.898	2.441 2.441 2.441	1.339 1.102 1.417	3.150 2.953 3.346	4.528 4.331 5.724	6.38 4.90 7.22
2.13/16 2.7/8 2.15/16	S-16 45L S-16 46L S-16 47L	3.898 4.094 4.094	2.441 3.386 3.386	1.417 1.496 1.496	3.346 3.346 3.346	4.724 4.724 4.724	7.22 9.18 9.18
3 3.1/16 3.1/8	S-16 48L S-16 49L S-16 50L	4.094 4.425 4.425	3.386 3.386 3.386	1.496 1.575 1.575	3.346 3.346 3.346	4.724 4.724 4.724	9.18 10.40 10.40
3.3/16 3.1/4 3.5/16	S-16 51L S-1652L S-1653L	4.425 4.651 4.751	3.386 3.386 3.386	1.575 1.654 1.654	3.346 3.543 3.543	4.724 4.921 4.921	10.40 10.84 11.60
3.3/8 3.7/16 3.1/2	S-16 54L S-16 55L S-16 56L	4.751 4.803 4.803	3.386 3.386 3.386	1.654 1.732 1.732	3.543 3.543 3.543	4.921 4.921 4.921	11.60 11.45 11.45
3.5/8 3.3/4 3.7/8	S-16 58L S-16 60L S-16 62L	5.118 5.118 5.276	4.173 4.173 4.173	1.811 1.811 1.890	3.740 3.740 3.740	5.118 5.118 5.118	15.20 15.20 15.14
4 4.1/8 4.1/4	S-16 64L S-16 66L S-16 68L	5.591 5.591 5.787	4.173 4.173 4.173	1.969 1.969 2.047	3.740 3.740 4.134	5.118 5.118 5.512	16.68 16.68 18.58
4.3/8 4.1/2	S-16 70L S-16 72L	6.024 6.024	5.000 5.000	2.126 2.126	4.134 4.134	5.512 5.512	21.59 21.59
