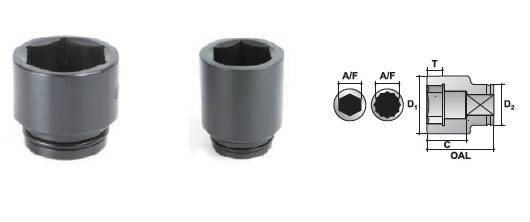

A / F : tamaño normal en planos
D1 : Diámetro exterior máximo. extremo del enchufe
D2 : extremo de accionamiento cuadrado de diámetro exterior máximo
OAL : Longitud total nominal
T : profundidad mínima de la forma del encaje
C : profundidad de holgura del perno
D1 : Diámetro exterior máximo. extremo del enchufe
D2 : extremo de accionamiento cuadrado de diámetro exterior máximo
OAL : Longitud total nominal
T : profundidad mínima de la forma del encaje
C : profundidad de holgura del perno
A / F mm | MODELO Número | D1 mm | D2 mm | T mm | C mm | OAL mm | Peso Kg. |
|---|---|---|---|---|---|---|---|
32 33 34 |
S-24 M32 S-24 M33 S-24 M34 |
58.0 59.0 60.0 |
82.0 82.0 82.0 |
19.0 19.0 20.0 |
33.0 33.0 33.0 |
75.0 75.0 75.0 |
1.91 1.91 1.91 |
35 36 37 |
S-24 M35 S-24 M36 S-24 M37 |
62.0 63.0 64.0 |
82.0 82.0 82.0 |
21.0 21.0 21.0 |
35.0 35.0 35.0 |
77.0 77.0 77.0 |
1.97 1.97 1.97 |
38 39 40 |
S-24 M38 S-24 M39 S-24 M40 |
65.0 67.0 68.0 |
84.0 84.0 84.0 |
21.0 22.0 22.0 |
35.0 36.0 36.0 |
77.0 78.0 78.0 |
2.07 2.12 2.13 |
41 42 43 |
S-24 M41 S-24 M42 S-24 M43 |
69.0 70.0 71.0 |
84.0 84.0 84.0 |
23.0 23.0 24.0 |
37.0 37.0 38.0 |
79.0 79.0 80.0 |
2.14 2.15 2.17 |
44 45 46 |
S-24 M44 S-24 M45 S-24 M46 |
73.0 74.0 75.0 |
84.0 84.0 86.0 |
24.0 25.0 26.0 |
38.0 39.0 40.0 |
80.0 81.0 82.0 |
2.20 2.22 2.35 |
47 48 49 |
S-24 M47 S-24 M48 S-24 M49 |
77.0 78.0 79.0 |
86.0 86.0 86.0 |
26.0 26.0 27.0 |
40.0 40.0 41.0 |
82.0 82.0 83.0 |
2.38 2.39 2.41 |
50 51 52 |
S-24 M50 S-24 M51 S-24 M52 |
80.0 81.0 82.0 |
86.0 86.0 86.0 |
27.0 27.0 28.0 |
41.0 41.0 42.0 |
83.0 83.0 84.0 |
2.42 2.42 2.45 |
54 55 56 |
S-24 M54 S-24 M55 S-24 M56 |
84.0 86.0 88.0 |
86.0 86.0 86.0 |
28.0 29.0 29.0 |
42.0 43.0 43.0 |
84.0 85.0 85.0 |
2.47 2.52 2.71 |
57 58 59 |
S-24 M57 S-24 M58 S-24 M59 |
88.0 90.0 90.0 |
86.0 86.0 86.0 |
29.0 30.0 32.0 |
43.0 44.0 46.0 |
85.0 86.0 88.0 |
2.67 2.78 2.75 |
60 61 62 |
S-24 M60 S-24 M61 S-24 M62 |
90.0 94.0 94.0 |
86.0 86.0 86.0 |
32.0 32.0 32.0 |
46.0 46.0 46.0 |
88.0 88.0 88.0 |
2.75 2.92 2.92 |
65 67 70 |
S-24 M65 S-24 M67 S-24 M70 |
98.0 101.0 104.0 |
86.0 86.0 86.0 |
34.0 36.0 38.0 |
48.0 50.0 53.0 |
90.0 92.0 95.0 |
3.09 3.26 3.40 |
73 75 76 |
S-24 M73 S-24 M75 S-24 M76 |
108.0 111.0 118.0 |
86.0 86.0 86.0 |
40.0 42.0 44.0 |
55.0 59.0 61.0 |
97.0 101.0 103.0 |
3.71 4.04 4.41 |
80 85 86 |
S-24 M80 S-24 M85 S-24 M86 |
118.0 124.0 124.0 |
86.0 86.0 86.0 |
44.0 48.0 50.0 |
61.0 66.0 68.0 |
103.0 108.0 110.0 |
4.41 4.88 4.82 |
90 95 100 |
S-24 M90 S-24 M95 S-24 M100 |
130.0 135.0 143.0 |
106.0 106.0 106.0 |
53.0 56.0 59.0 |
71.0 74.0 77.0 |
113.0 116.0 119.0 |
6.24 6.56 7.48 |
105 110 115 |
S-24 M105 S-24 M110 S-24 M115 |
148.0 154.0 161.0 |
106.0 106.0 127.0 |
62.0 65.0 68.0 |
82.0 85.0 88.0 |
124.0 127.0 130.0 |
7.93 8.51 10.48 |
120 125 130 |
S-24 M120 S-24 M125 S-24 M130 |
168.0 174.0 180.0 |
127.0 127.0 127.0 |
71.0 74.0 77.0 |
91.0 96.0 99.0 |
133.0 138.0 141.0 |
11.38 12.31 13.09 |
