1 1/2 "- Hexágono fraccional

$1 1/2 - Hexágono fraccional$

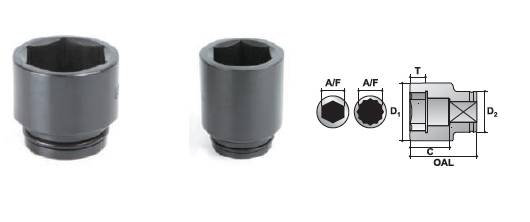

A / F : tamaño normal en planos
D1 : Diámetro exterior máximo. extremo del enchufe
D2 : extremo de accionamiento cuadrado de diámetro exterior máximo
OAL : Longitud total nominal
T : profundidad mínima de la forma del encaje
C : profundidad de holgura del perno

A / F pulgada	MODELO Número	D1 pulgada	D2 pulgada	T pulgada	C pulgada	OAL pulgada	Peso Libras.
1.3/8 1.7/16 1.1/2	S-2422 S-2423 S-2424	2.441 2.520 2.559	3.228 3.228 3.307	0.827 0.827 0.827	1.378 1.378 1.378	3.031 3.031 3.031	4.30 4.30 4.60
1.9/16 1.5/8 1.11/16	S-2425 S-2426 S-2427	2.677 2.717 2.795	3.307 3.307 3.307	0.866 0.906 0.945	1.417 1.457 1.496	3.071 3.110 3.150	4.70 4.70 4.80
1.3/4 1.13/16 1.7/8	S-2428 S-2429 S-2430	2.913 2.953 3.071	3.307 3.386 3.386	0.984 1.024 1.024	1.535 1.575 1.575	3.189 3.228 3.228	4.90 5.20 5.30
1.15/16 2 2.1/16	S-2431 S-2432 S-2433	3.110 3.189 3.228	3.386 3.386 3.386	1.063 1.063 1.102	1.614 1.614 1.654	3.268 3.268 3.307	5.30 5.30 5.40
2.1/8 2.3/16 2.1/4	S-2434 S-2435 S-2436	3.307 3.465 3.465	3.386 3.386 3.386	1.102 1.142 1.142	1.654 1.693 1.693	3.307 3.346 3.346	5.40 6.00 5.90
2.5/16 2.3/8 2.7/16	S-2437 S-2438 S-2439	3.543 3.543 3.701	3.386 3.386 3.386	1.181 1.260 1.260	1.732 1.811 1.811	3.386 3.465 3.465	6.10 6.10 6.40
2.1/2 2.9/16 2.5/8	S-2440 S-2441 S-2442	3.751 3.858 3.976	3.386 3.386 3.386	1.260 1.339 1.417	1.811 1.890 1.969	3.465 3.543 4.622	7.30 6.80 7.20
2.11/16 2.3/4 2.13/16	S-2443 S-2444 S-2445	4.026 4.094 4.144	3.386 3.386 3.386	1.417 1.496 1.496	1.969 2.087 2.087	3.622 3.740 3.740	7.40 7.50 8.30
2.7/8 2.15/16 3	S-2446 S-2447 S-2448	4.252 4.372 4.420	3.386 3.386 3.386	1.575 1.654 1.654	2.165 2.323 2.323	3.819 3.976 3.976	8.20 8.90 9.80
3.1/16 3.1/8 3.3/16	S-2449 S-2450 S-2451	4.646 4.646 4.716	3.386 3.386 3.386	1.732 1.732 1.732	2.402 2.402 2.402	4.055 4.055 4.055	9.70 9.70 10.70
3.1/4 3.5/16 3.3/8	S-2452 S-2453 S-2454	4.716 4.882 4.882	3.386 3.386 3.386	1.732 1.969 1.969	2.402 2.677 2.677	4.055 4.331 4.331	10.70 10.60 10.60
3.7/16 3.1/2 3.9/16	S-2455 S-2456 S-2457	5.118 5.118 5.193	4.173 4.173 4.173	2.087 2.087 2.087	2.795 2.795 2.795	4.449 4.449 4.449	13.70 13.70 13.80
3.5/8 3.11/16 3.3/4	S-2458 S-2459 S-2460	5.193 5.315 5.315	4.173 4.173 4.173	2.087 2.205 2.205	2.795 2.913 2.913	4.449 4.567 4.567	13.80 17.00 17.00
3.13/16 3.7/8 3.15/16	S-2461 S-2462 S-2463	5.670 5.670 5.745	4.173 4.173 4.173	2.323 2.323 2.323	3.031 3.031 3.031	4.685 4.685 4.685	17.00 17.00 17.90
4 4.1/16 4.1/8	S-2464 S-2465 S-2466	5.745 5.827 5.827	4.173 4.173 4.173	2.323 2.441 2.441	3.031 3.228 3.228	4.685 4.882 4.882	17.90 17.40 17.40
4.3/16 4.1/4 4.3/8	S-2467 S-2468 S-2470	6.103 6.103 6.193	4.173 4.173 4.173	2.559 2.559 2.559	3.346 3.346 3.346	5.000 5.000 5.000	18.70 18.70 19.70
4.1/2 4.5/8 4.3/4	S-2472 S-2474 S-2476	6.339 6.419 6.614	5.000 5.000 5.000	2.677 2.677 2.795	3.465 3.465 3.583	5.118 5.118 5.236	23.00 24.20 25.00
5 5.1/8	S-2480 S-2482	6.930 7.087	5.000 5.000	2.193 3.031	3.780 3.898	5.433 5.551	28.30 28.80
